ZCY PRODUCT CATALOGUE

Motorcycle Springs

Browse motorcycle springs by model, product image and listed specifications.

Confirm the exact version, fitment, availability and quotation with us.

30 entries · Page 1 of 1

All categories

Motorcycle Springs

28281-K1M-T00 kick-start return spring

Catalogue product reference. Confirm the exact model, dimensions, fitment and availability before quotation.

28281-K1M-T00

Catalogue specifications
Coil width shown	18 mm
Coil outer diameter shown	40 mm
Weight shown	58 g

Diagram dimensions and weights are transcribed from the source image, not independently measured. The source labels these figures as manual measurements.

Original catalogue wording

28281-K1M-T00启动弹簧

Components catalogue A, p. 24
Catalogue ID: ZCY-807904ed98ac

Enquire about this item

Motorcycle Springs

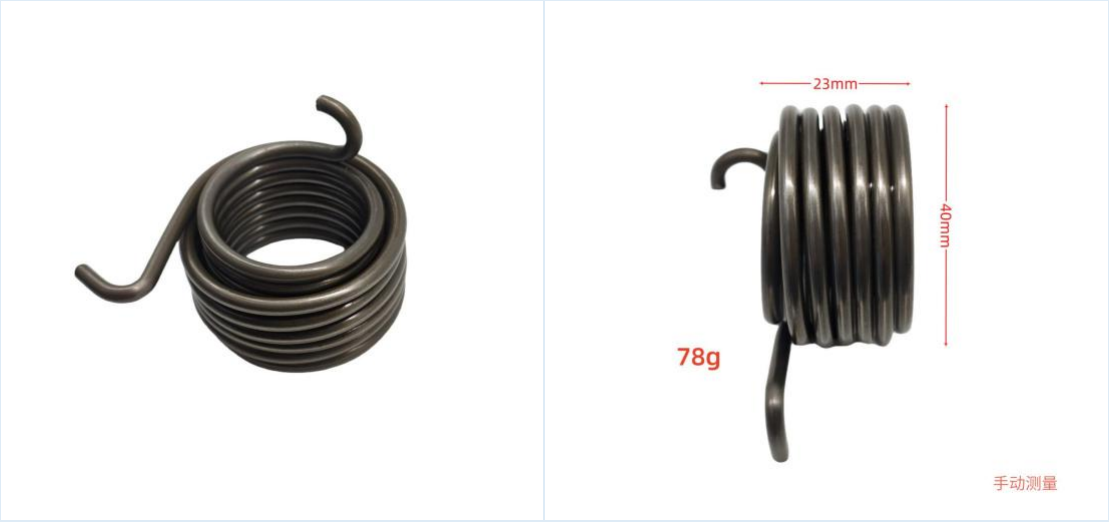

28281-KPH-900 kick-start return spring

Catalogue product reference. Confirm the exact model, dimensions, fitment and availability before quotation.

28281-KPH-900

Catalogue specifications
Coil width shown	23 mm
Coil outer diameter shown	40 mm
Weight shown	78 g

Diagram dimensions and weights are transcribed from the source image, not independently measured. The source labels these figures as manual measurements.

Original catalogue wording

28281-KPH-900启动弹簧

Components catalogue A, p. 24
Catalogue ID: ZCY-e3233031c945

Enquire about this item

Motorcycle Springs

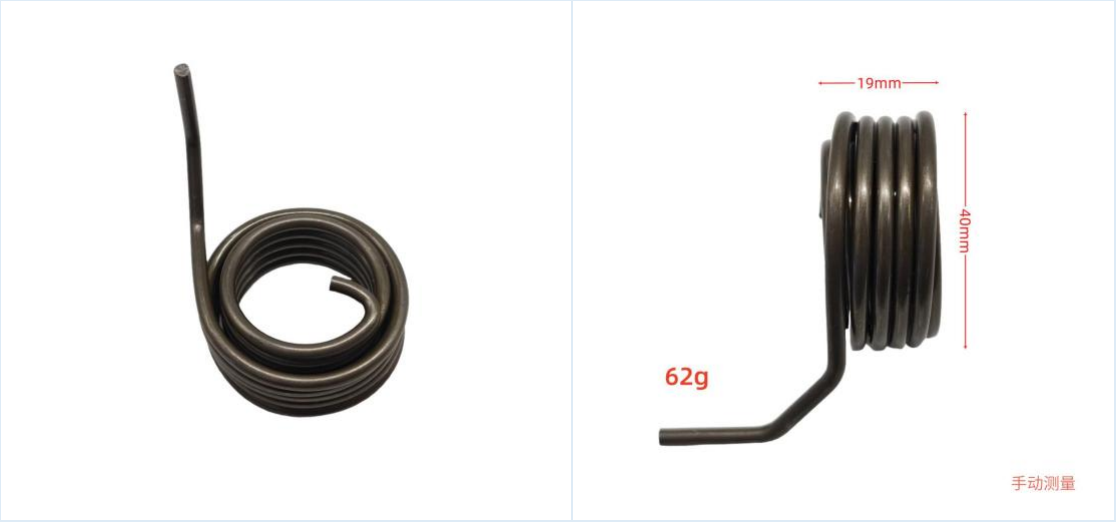

28281-KWB-600 kick-start return spring

Catalogue product reference. Confirm the exact model, dimensions, fitment and availability before quotation.

28281-KWB-600

Catalogue specifications
Coil width shown	19 mm
Coil outer diameter shown	40 mm
Weight shown	62 g

Diagram dimensions and weights are transcribed from the source image, not independently measured. The source labels these figures as manual measurements.

Original catalogue wording

28281-KWB-600启动弹簧

Components catalogue A, p. 24
Catalogue ID: ZCY-f432ee480da0

Enquire about this item

Motorcycle Springs

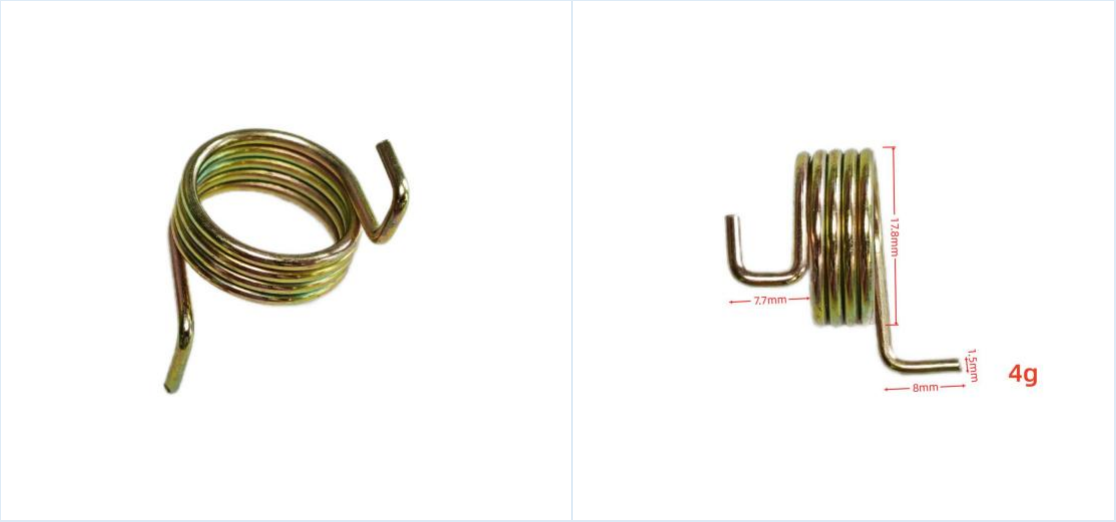

brake spring

Catalogue product reference. Confirm the exact model, dimensions, fitment and availability before quotation.

Identify by image and dimensions

Catalogue specifications
Coil-body diameter shown	17.8 mm
End lengths shown	7.7 mm / 8 mm
Wire diameter shown	1.5 mm
Weight shown	4 g

Diagram dimensions and weights are transcribed from the source image, not independently measured.

Original catalogue wording

刹车弹簧

Components catalogue A, p. 23
Catalogue ID: ZCY-a07f0b6f5221

Enquire about this item

Motorcycle Springs

CG125 brake tension spring

Catalogue product reference. Confirm the exact model, dimensions, fitment and availability before quotation.

CG125

Catalogue specifications
Overall length shown	146 mm
Coil-body length shown	21 mm
Coil-body diameter shown	6.9 mm
Hook-end dimension shown	16 mm
Hook-opening dimension shown	13 mm
Wire diameter shown	1 mm
Weight shown	4 g

Diagram dimensions and weights are transcribed from the source image, not independently measured.

Original catalogue wording

CG125刹车拉簧

Components catalogue A, p. 23
Catalogue ID: ZCY-e10b4207a400

Enquire about this item

Motorcycle Springs

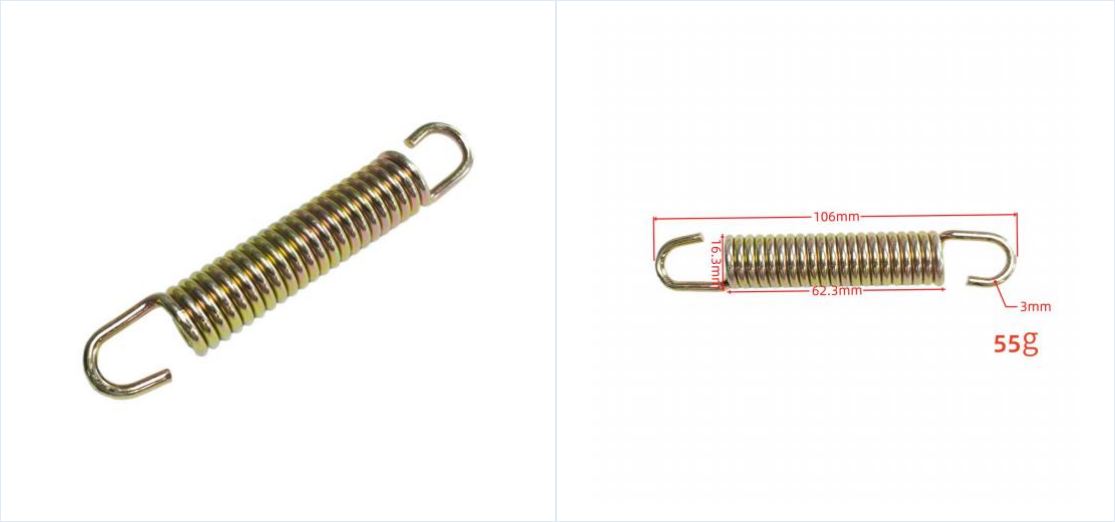

CG125 main-stand spring / main-stand spring

Catalogue product reference. Confirm the exact model, dimensions, fitment and availability before quotation.

CG125

Catalogue specifications
Overall length shown	106 mm
Coil-body length shown	62.3 mm
Coil-body diameter shown	16.3 mm
Wire diameter shown	3 mm
Weight shown	55 g

Diagram dimensions and weights are transcribed from the source image, not independently measured.

Original catalogue wording

CG125主支架弹簧/主站架弹簧

Components catalogue A, p. 22
Catalogue ID: ZCY-d191c112016e

Enquire about this item

Motorcycle Springs

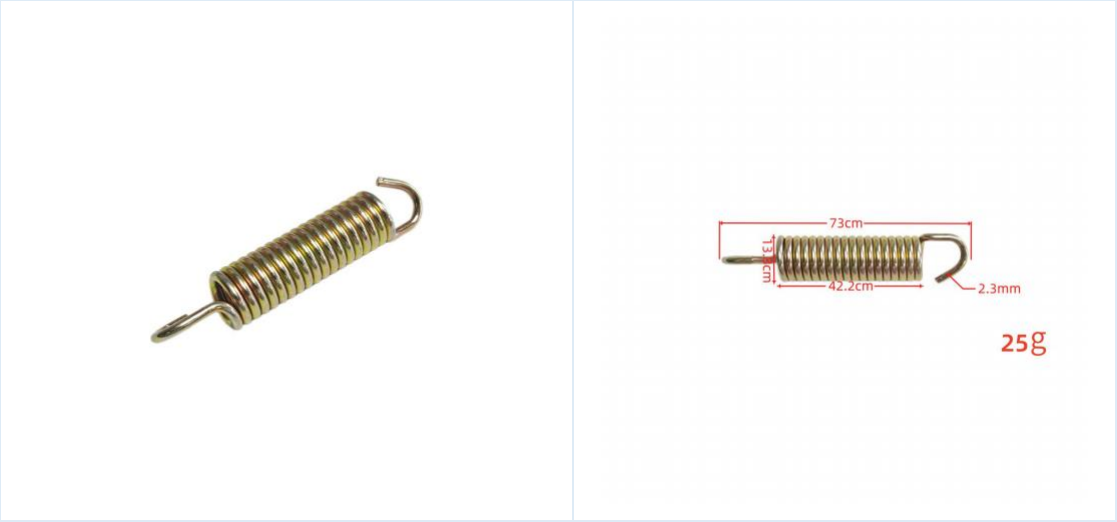

Dayang brake spring

Catalogue product reference. Confirm the exact model, dimensions, fitment and availability before quotation.

Identify by image and dimensions

Catalogue specifications
Overall length as printed	73 cm
Coil-body length as printed	42.2 cm
Coil-body diameter as printed	13.8 cm
Wire diameter shown	2.3 mm
Weight shown	25 g

Diagram dimensions and weights are transcribed from the source image, not independently measured. The source diagram prints 73 cm, 42.2 cm and 13.8 cm. These unusual units are retained exactly; confirm before selecting this item. No conversion to mm has been assumed.

Original catalogue wording

大阳刹车簧

Components catalogue A, p. 23
Catalogue ID: ZCY-afdc1a6b72c3

Enquire about this item

Motorcycle Springs

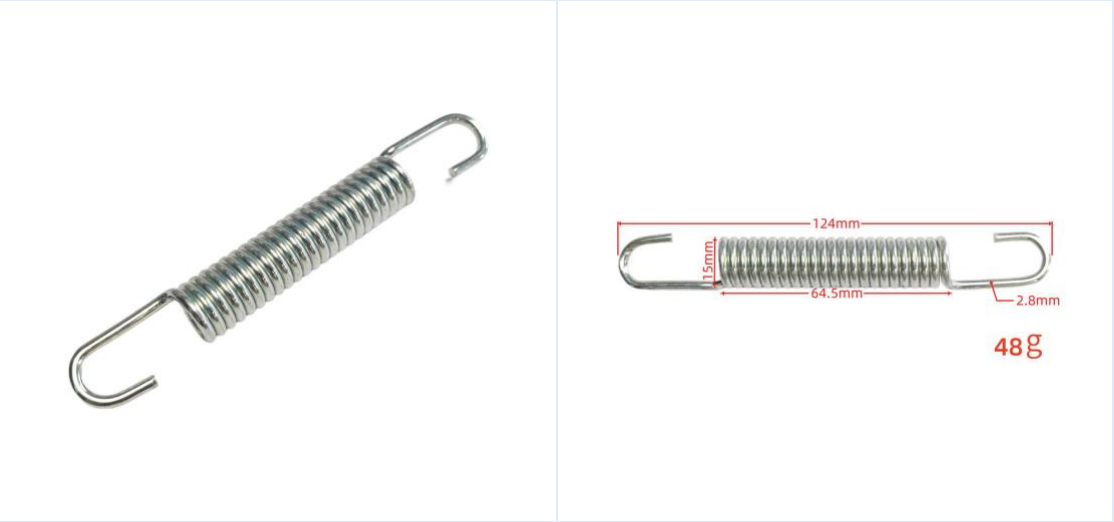

GN125 main-stand spring / main-stand spring

Catalogue product reference. Confirm the exact model, dimensions, fitment and availability before quotation.

GN125

Catalogue specifications
Overall length shown	124 mm
Coil-body length shown	64.5 mm
Coil-body diameter shown	15 mm
Wire diameter shown	2.8 mm
Weight shown	48 g

Diagram dimensions and weights are transcribed from the source image, not independently measured.

Original catalogue wording

GN125主支架弹簧/主站架弹簧

Components catalogue A, p. 22
Catalogue ID: ZCY-bbb42998758c

Enquire about this item

Motorcycle Springs

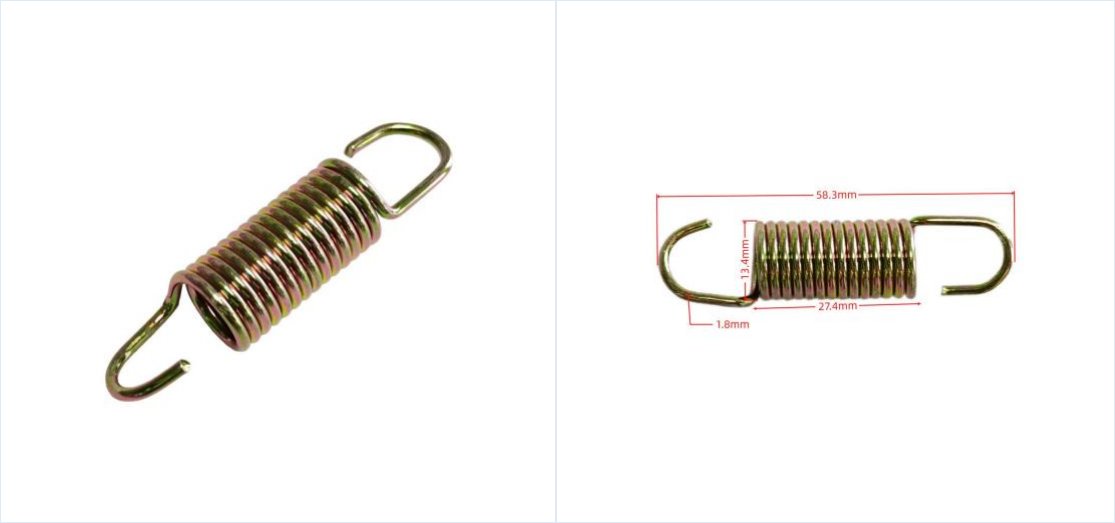

GN125/150 Suzuki Wang brake-pedal / rear-brake return spring

Catalogue product reference. Confirm the exact model, dimensions, fitment and availability before quotation.

GN125/150

Catalogue specifications
Overall length shown	58.3 mm
Coil-body length shown	27.4 mm
Coil-body diameter shown	13.4 mm
Wire diameter shown	1.8 mm

Diagram dimensions and weights are transcribed from the source image, not independently measured.

Original catalogue wording

GN125/150铃木王刹车踏板弹簧后制动回位弹簧

Components catalogue A, p. 22
Catalogue ID: ZCY-acecea83eaae

Enquire about this item

Motorcycle Springs

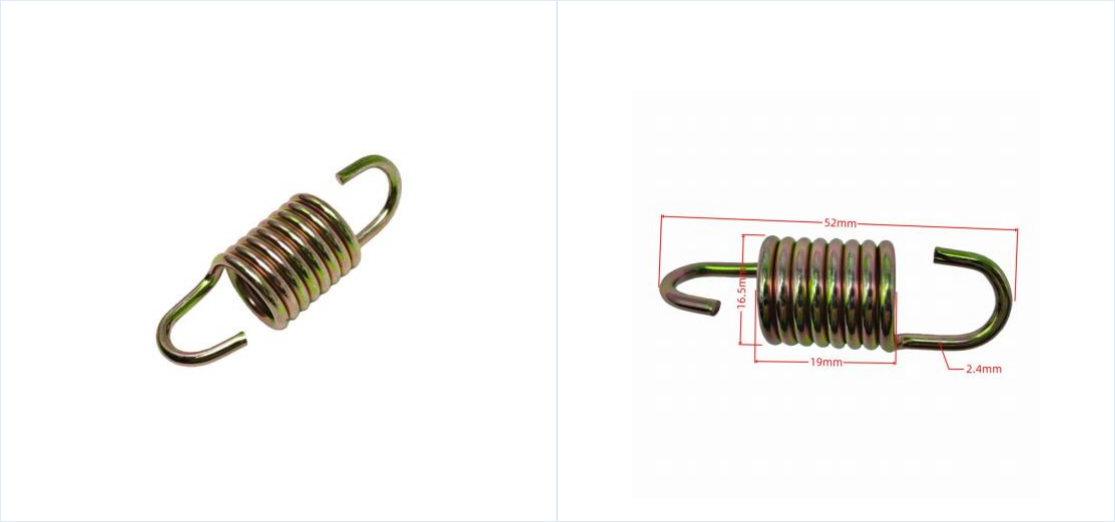

JH70 brake spring

Catalogue product reference. Confirm the exact model, dimensions, fitment and availability before quotation.

JH70

Catalogue specifications
Overall length shown	52 mm
Coil-body length shown	19 mm
Coil-body diameter shown	16.5 mm
Wire diameter shown	2.4 mm

Diagram dimensions and weights are transcribed from the source image, not independently measured.

Original catalogue wording

JH70刹车簧

Components catalogue A, p. 22
Catalogue ID: ZCY-0982f2ebf7a1

Enquire about this item

Motorcycle Springs

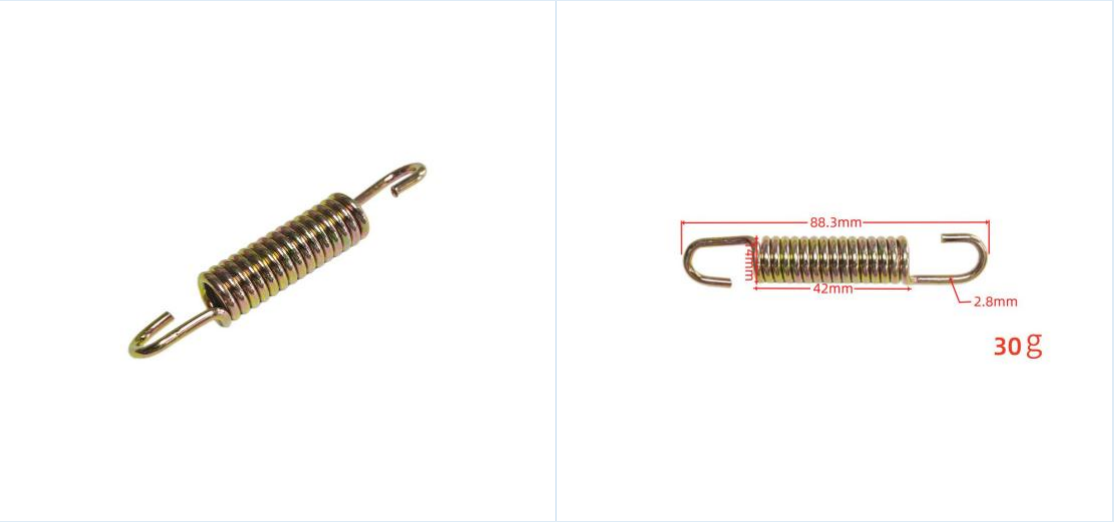

JH70/ underbone /WAVE110/WAVE125/WIN100 main-stand spring / main-stand spring

Catalogue product reference. Confirm the exact model, dimensions, fitment and availability before quotation.

JH70/WAVE110/WAVE125/WIN100

Catalogue specifications
Overall length shown	88.3 mm
Coil-body length shown	42 mm
Coil-body diameter shown	14 mm
Wire diameter shown	2.8 mm
Weight shown	30 g

Diagram dimensions and weights are transcribed from the source image, not independently measured.

Original catalogue wording

JH70/弯梁车/WAVE110/WAVE125/WIN100主支架弹簧/主站架弹簧

Components catalogue A, p. 22
Catalogue ID: ZCY-1a00c8b28424

Enquire about this item

Motorcycle Springs

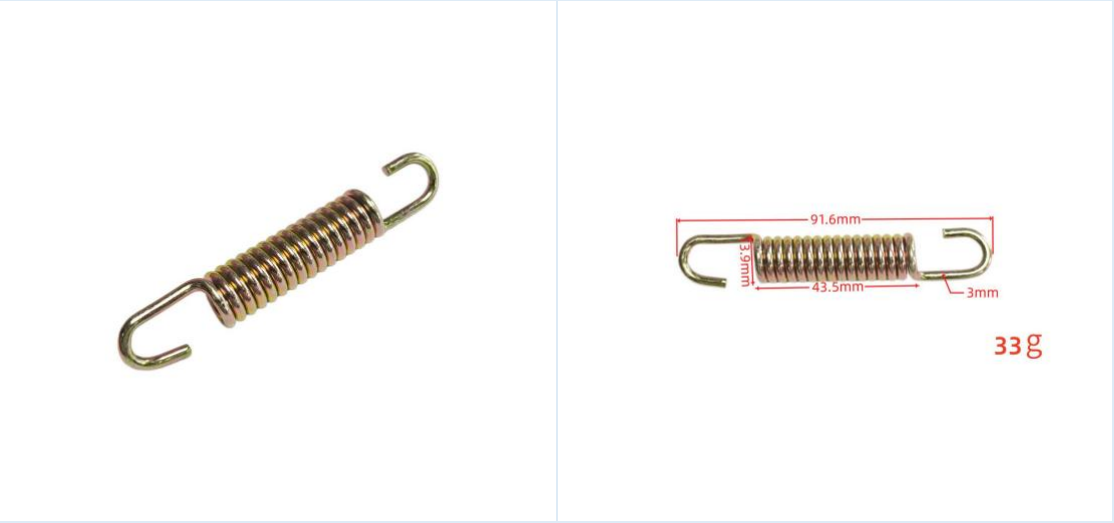

JH70/ underbone /WAVE110/WAVE125/WIN100 main-stand spring / main-stand spring

Catalogue product reference. Confirm the exact model, dimensions, fitment and availability before quotation.

JH70/WAVE110/WAVE125/WIN100

Catalogue specifications
Overall length shown	91.6 mm
Coil-body length shown	43.5 mm
Coil-body diameter shown	13.9 mm
Wire diameter shown	3 mm
Weight shown	33 g

Diagram dimensions and weights are transcribed from the source image, not independently measured.

Original catalogue wording

JH70/弯梁车/WAVE110/WAVE125/WIN100主支架弹簧/主站架弹簧

Components catalogue A, p. 22
Catalogue ID: ZCY-a7219ed78098

Enquire about this item

Motorcycle Springs

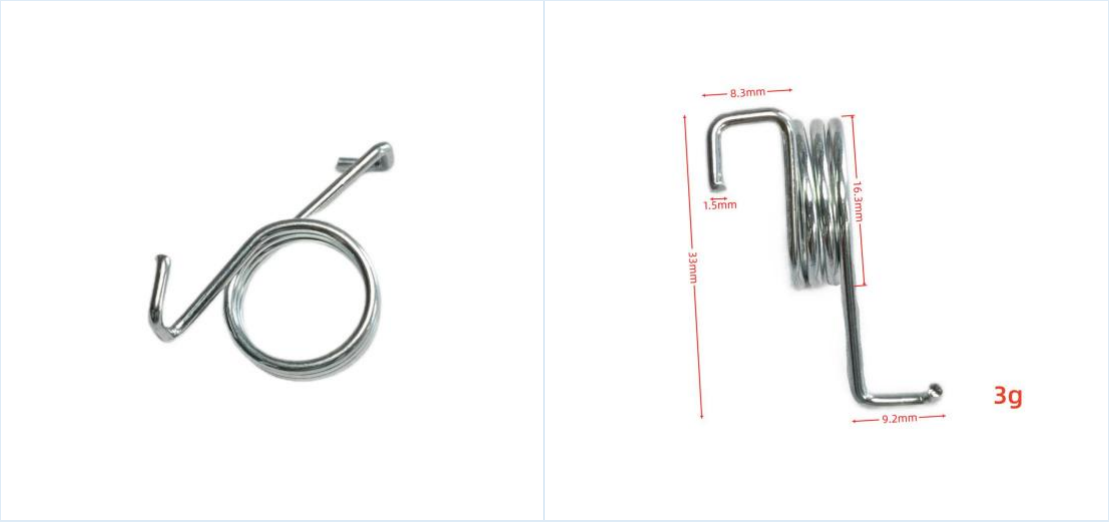

JH70/WAVE100 front-brake return spring

Catalogue product reference. Confirm the exact model, dimensions, fitment and availability before quotation.

JH70/WAVE100

Catalogue specifications
Overall length shown	33 mm
Coil-body dimension shown	16.3 mm
End lengths shown	8.3 mm / 9.2 mm
Wire diameter shown	1.5 mm
Weight shown	3 g

Diagram dimensions and weights are transcribed from the source image, not independently measured.

Original catalogue wording

JH70/WAVE100前制动回位弹簧

Components catalogue A, p. 23
Catalogue ID: ZCY-cee301204aef

Enquire about this item

Motorcycle Springs

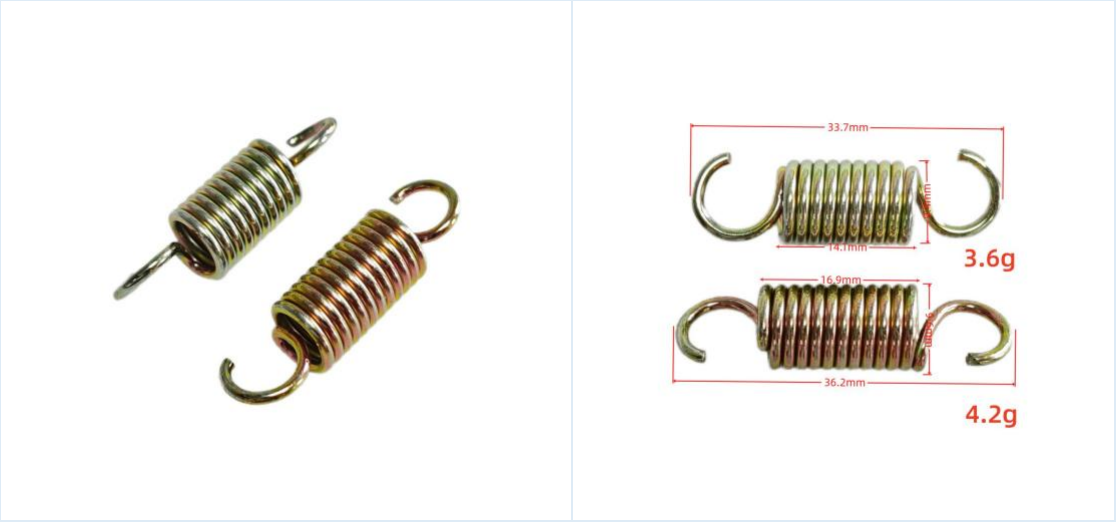

Motorcycle extension spring - 33.7 mm source variant

Catalogue product reference. Confirm the exact model, dimensions, fitment and availability before quotation.

Identify by image and dimensions

Catalogue specifications
Overall length shown	33.7 mm
Coil-body length shown	14.1 mm
Weight shown	3.6 g

Distinct size variant shown under a shared source caption. A small body-diameter label is partly obscured by the hook in the source image and has not been transcribed. Consult the retained diagram and confirm this dimension.

Original catalogue wording

摩托车拉伸弹簧

Components catalogue A, p. 23
Catalogue ID: ZCY-d523e314dc00

Enquire about this item

Motorcycle Springs

Motorcycle extension spring - 36.2 mm source variant

Catalogue product reference. Confirm the exact model, dimensions, fitment and availability before quotation.

Identify by image and dimensions

Catalogue specifications
Overall length shown	36.2 mm
Coil-body length shown	16.9 mm
Weight shown	4.2 g

Original catalogue wording

摩托车拉伸弹簧

Components catalogue A, p. 23
Catalogue ID: ZCY-5af636548d00

Enquire about this item

Motorcycle Springs

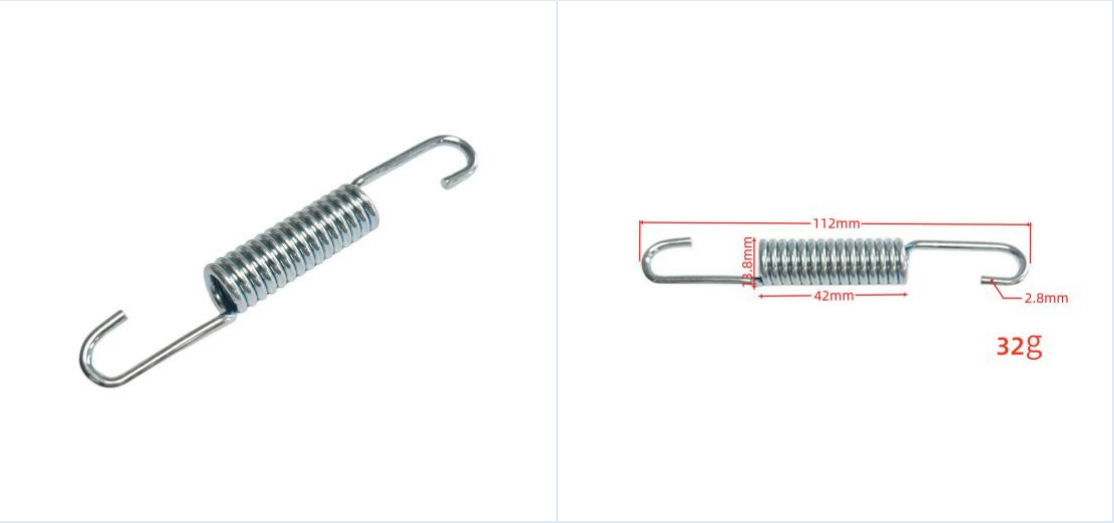

motorcycle main-stand spring

Catalogue product reference. Confirm the exact model, dimensions, fitment and availability before quotation.

Identify by image and dimensions

Catalogue specifications
Overall length shown	112 mm
Coil-body length shown	42 mm
Coil-body diameter shown	18.0 mm
Wire diameter shown	2.8 mm
Weight shown	32 g

Diagram dimensions and weights are transcribed from the source image, not independently measured.

Original catalogue wording

摩托车主支架弹簧

Components catalogue A, p. 22
Catalogue ID: ZCY-8daf313bf861

Enquire about this item

Motorcycle Springs

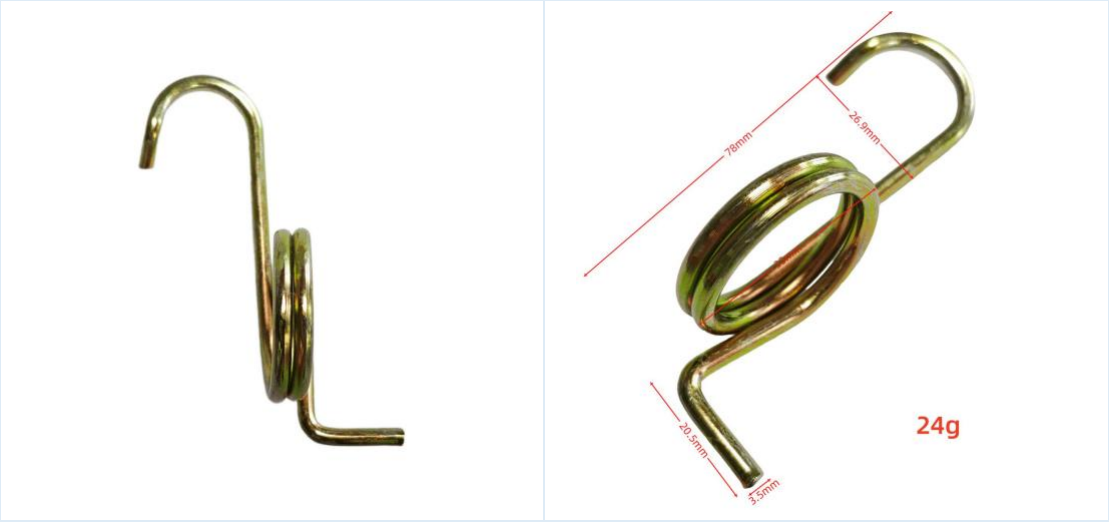

rear-brake return spring

Catalogue product reference. Confirm the exact model, dimensions, fitment and availability before quotation.

Identify by image and dimensions

Catalogue specifications
Overall length shown	78 mm
End lengths shown	26.9 mm / 20.5 mm
Wire diameter shown	3.5 mm
Weight shown	24 g

Diagram dimensions and weights are transcribed from the source image, not independently measured.

Original catalogue wording

后制动器刹车簧复位簧

Components catalogue A, p. 23
Catalogue ID: ZCY-99f06e51f4df

Enquire about this item

Motorcycle Springs

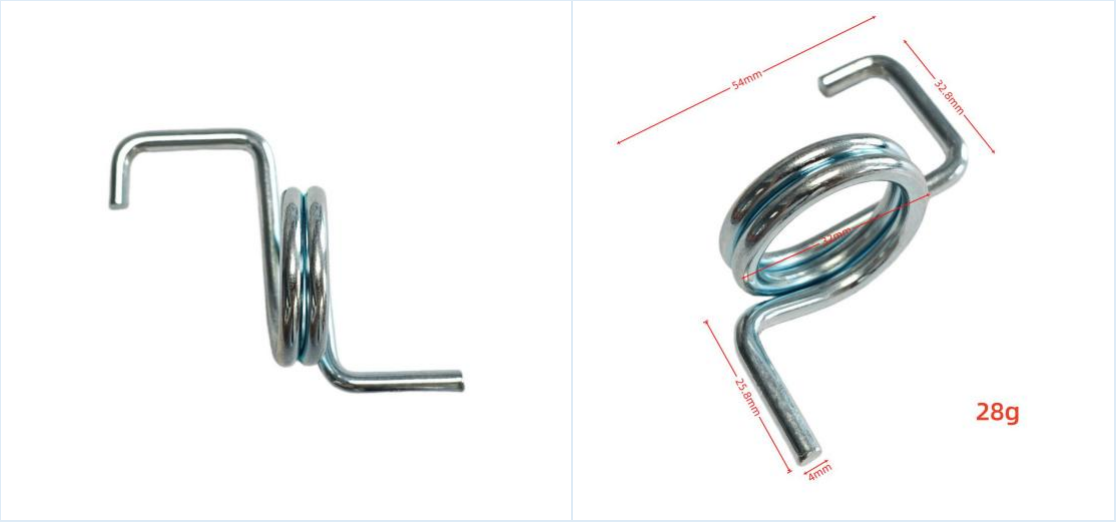

rear-brake spring

Catalogue product reference. Confirm the exact model, dimensions, fitment and availability before quotation.

Identify by image and dimensions

Catalogue specifications
Overall length shown	54 mm
Coil dimension shown	37 mm
End lengths shown	32.8 mm / 25.8 mm
Wire diameter shown	4 mm
Weight shown	28 g

Diagram dimensions and weights are transcribed from the source image, not independently measured.

Original catalogue wording

后制动器弹簧刹车簧

Components catalogue A, p. 24
Catalogue ID: ZCY-a381c34ed156

Enquire about this item

Motorcycle Springs

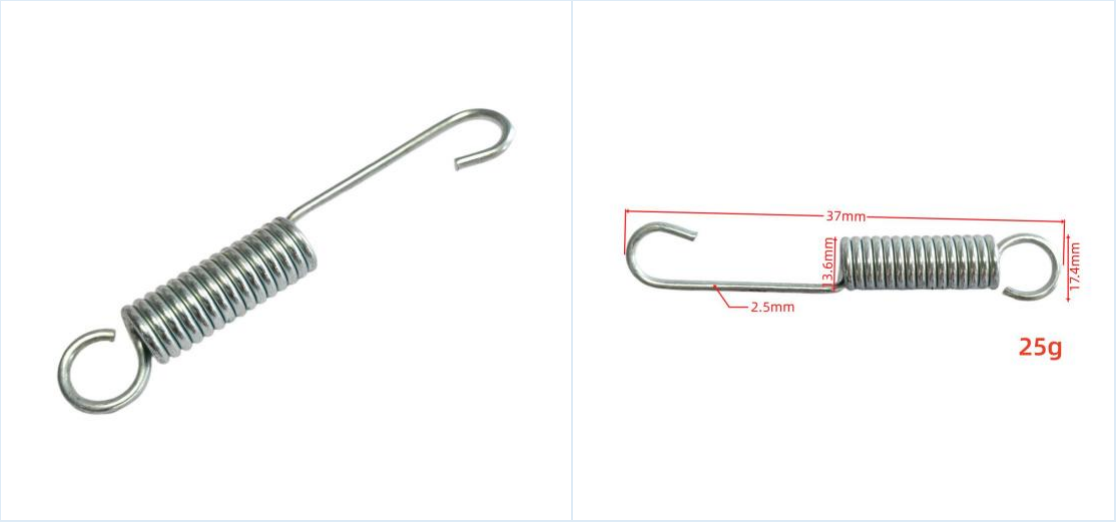

side-stand spring

Catalogue product reference. Confirm the exact model, dimensions, fitment and availability before quotation.

Identify by image and dimensions

Catalogue specifications
Overall length as printed	37 mm
Coil-body diameter shown	13.6 mm
Eye-end diameter shown	17.4 mm
Wire diameter shown	2.5 mm
Weight shown	25 g

Diagram dimensions and weights are transcribed from the source image, not independently measured. The source diagram prints 37 mm on the overall-length arrow. This appears inconsistent with the illustration and requires confirmation; it has not been corrected by inference.

Original catalogue wording

侧支架弹簧

Components catalogue A, p. 23
Catalogue ID: ZCY-d0272eb939cf

Enquire about this item

Motorcycle Springs

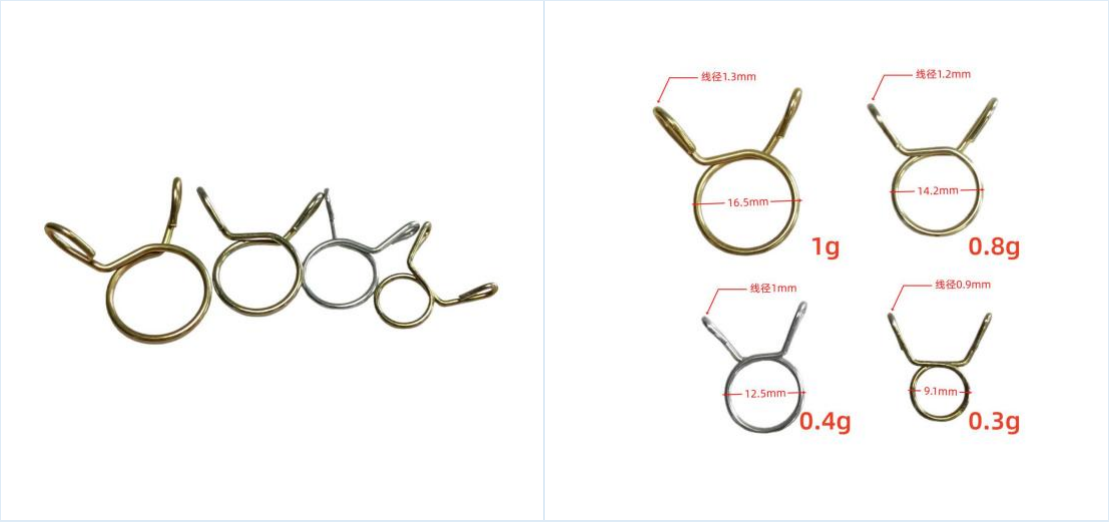

Spring hose clamp - 12.5 mm source variant

Catalogue product reference. Confirm the exact model, dimensions, fitment and availability before quotation.

Identify by image and dimensions

Catalogue specifications
Diameter shown	12.5 mm
Wire diameter	1 mm
Weight shown	0.4 g

One of four separately dimensioned variants under the shared source caption.

Original catalogue wording

扭转弹簧软管夹油管卡簧

Components catalogue A, p. 24
Catalogue ID: ZCY-98d0c5fa5e6d

Enquire about this item

Motorcycle Springs

Spring hose clamp - 14.2 mm source variant

Catalogue product reference. Confirm the exact model, dimensions, fitment and availability before quotation.

Identify by image and dimensions

Catalogue specifications
Diameter shown	14.2 mm
Wire diameter	1.2 mm
Weight shown	0.8 g

One of four separately dimensioned variants under the shared source caption.

Original catalogue wording

扭转弹簧软管夹油管卡簧

Components catalogue A, p. 24
Catalogue ID: ZCY-6ff0566c2821

Enquire about this item

Motorcycle Springs

Spring hose clamp - 16.5 mm source variant

Catalogue product reference. Confirm the exact model, dimensions, fitment and availability before quotation.

Identify by image and dimensions

Catalogue specifications
Diameter shown	16.5 mm
Wire diameter	1.3 mm
Weight shown	1 g

One of four separately dimensioned variants under the shared source caption.

Original catalogue wording

扭转弹簧软管夹油管卡簧

Components catalogue A, p. 24
Catalogue ID: ZCY-96d604bf0a97

Enquire about this item

Motorcycle Springs

Spring hose clamp - 9.1 mm source variant

Catalogue product reference. Confirm the exact model, dimensions, fitment and availability before quotation.

Identify by image and dimensions

Catalogue specifications
Diameter shown	9.1 mm
Wire diameter	0.9 mm
Weight shown	0.3 g

One of four separately dimensioned variants under the shared source caption.

Original catalogue wording

扭转弹簧软管夹油管卡簧

Components catalogue A, p. 24
Catalogue ID: ZCY-38235f46c6a1

Enquire about this item

Motorcycle Springs

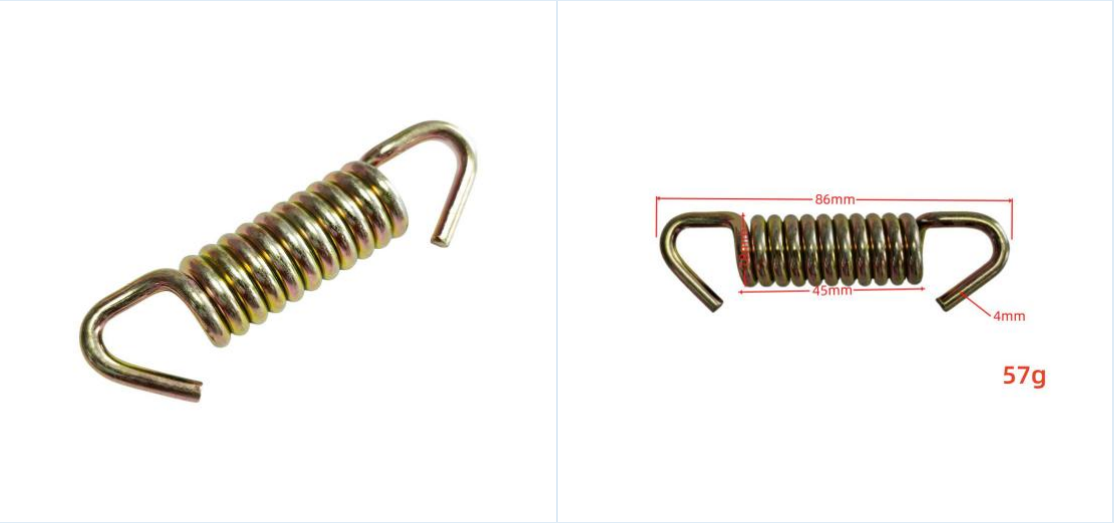

tricycle booster spring

Catalogue product reference. Confirm the exact model, dimensions, fitment and availability before quotation.

Identify by image and dimensions

Catalogue specifications
Overall length shown	86 mm
Coil-body length shown	45 mm
Wire diameter shown	4 mm
Weight shown	57 g

Diagram dimensions and weights are transcribed from the source image, not independently measured.

Original catalogue wording

三轮车加力器弹簧

Components catalogue A, p. 22
Catalogue ID: ZCY-6f3c8df15c17

Enquire about this item

Motorcycle Springs

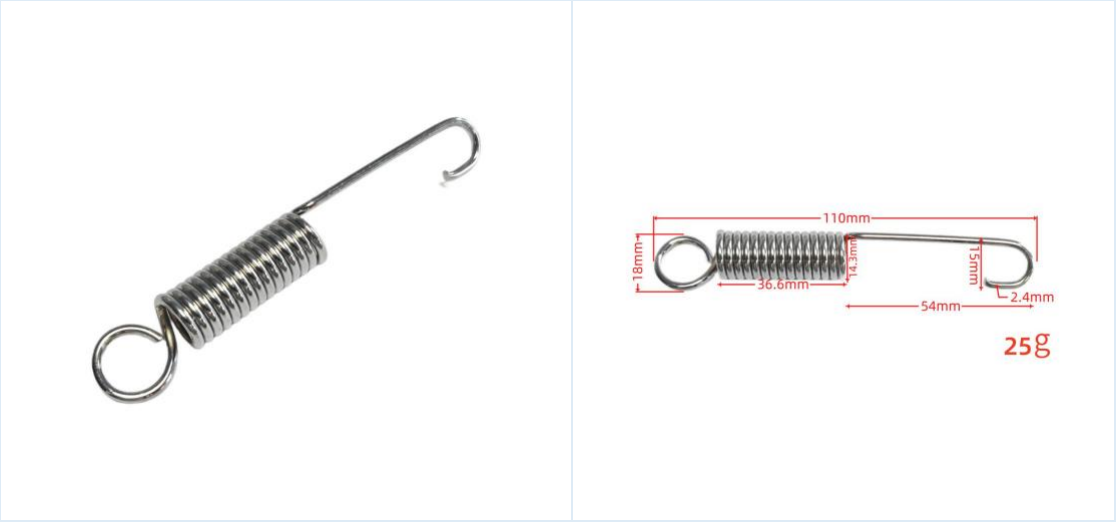

W100 Thai underbone side-stand spring

Catalogue product reference. Confirm the exact model, dimensions, fitment and availability before quotation.

W100

Catalogue specifications
Overall length shown	110 mm
Coil-body length shown	36.6 mm
Coil-body diameter shown	14.3 mm
End diameters shown	18 mm / 15 mm
Hook-end length shown	54 mm
Wire diameter shown	2.4 mm
Weight shown	25 g

Diagram dimensions and weights are transcribed from the source image, not independently measured.

Original catalogue wording

W100泰国弯梁车侧支架弹簧

Components catalogue A, p. 23
Catalogue ID: ZCY-7df4884a0c9a

Enquire about this item

Motorcycle Springs

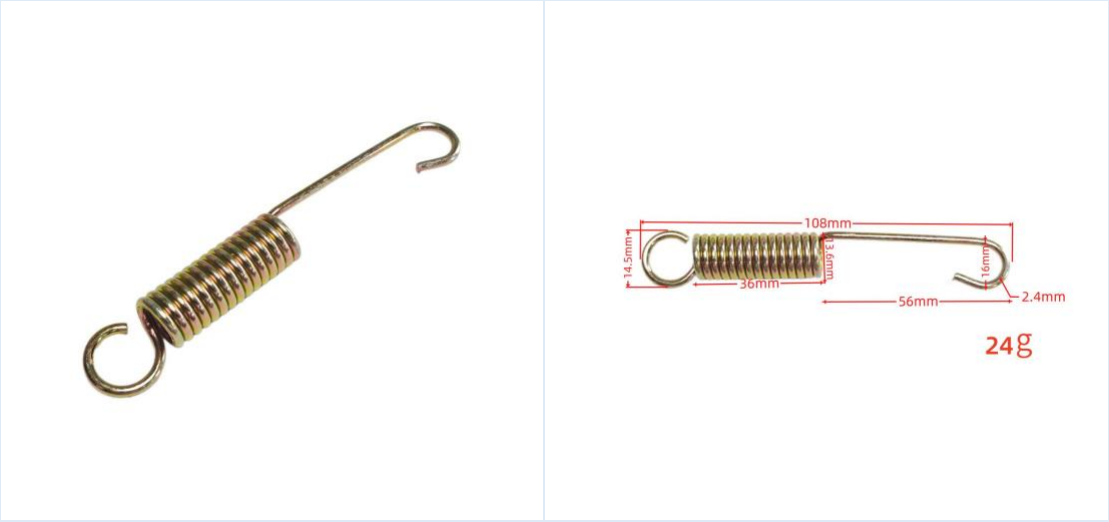

WAVE100 side-stand spring

Catalogue product reference. Confirm the exact model, dimensions, fitment and availability before quotation.

WAVE100

Catalogue specifications
Overall length shown	108 mm
Coil-body length shown	36 mm
Coil-body diameter shown	13.6 mm
End diameters shown	14.5 mm / 16 mm
Hook-end length shown	56 mm
Wire diameter shown	2.4 mm
Weight shown	24 g

Diagram dimensions and weights are transcribed from the source image, not independently measured.

Original catalogue wording

WAVE100侧支架弹簧

Components catalogue A, p. 23
Catalogue ID: ZCY-00a84e171234

Enquire about this item

Motorcycle Springs

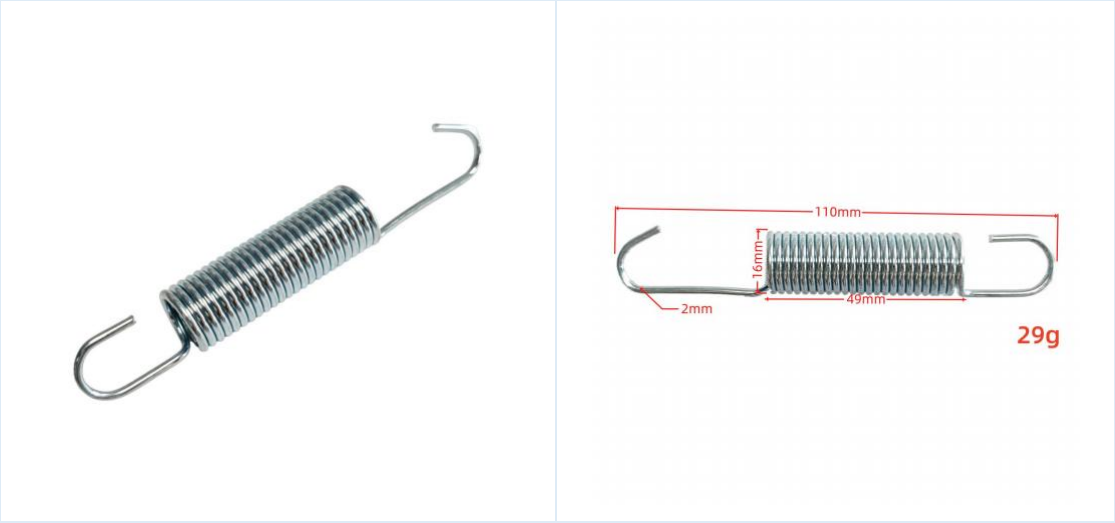

WAVE100 Thai underbone brake / rear swingarm / brake-rod spring

Catalogue product reference. Confirm the exact model, dimensions, fitment and availability before quotation.

WAVE100

Catalogue specifications
Overall length shown	110 mm
Coil-body length shown	49 mm
Coil-body diameter shown	16 mm
Wire diameter shown	2 mm
Weight shown	29 g

Diagram dimensions and weights are transcribed from the source image, not independently measured.

Original catalogue wording

WAVE100泰国弯梁车刹车/后平叉/刹车拉杆弹簧

Components catalogue A, p. 22
Catalogue ID: ZCY-1be49c5521fa

Enquire about this item

Motorcycle Springs

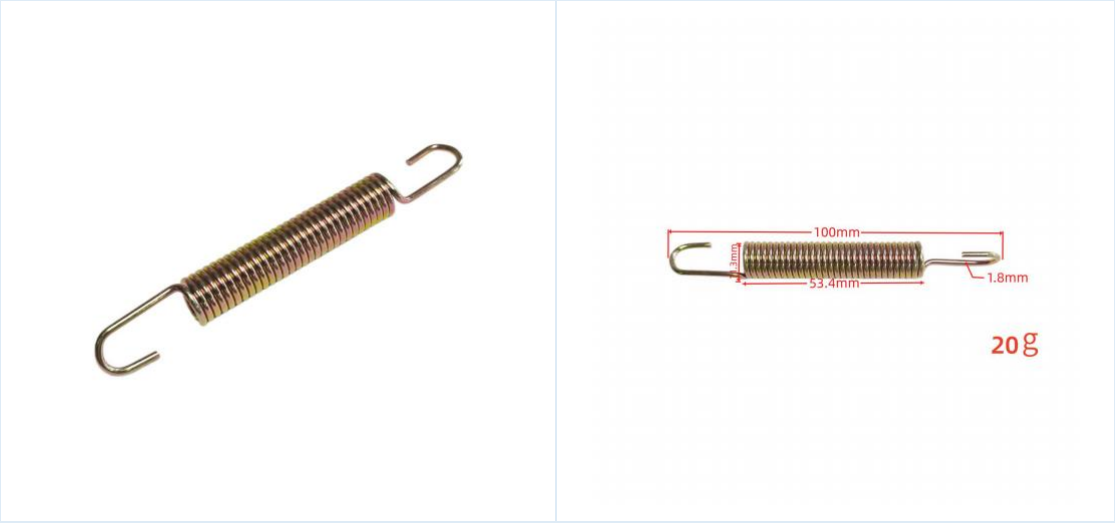

WAVE110/ Thai Honda brake spring / brake-rod spring / rear-brake return spring

Catalogue product reference. Confirm the exact model, dimensions, fitment and availability before quotation.

WAVE110

Catalogue specifications
Overall length shown	100 mm
Coil-body length shown	53.4 mm
Coil-body diameter shown	11.3 mm
Wire diameter shown	1.8 mm
Weight shown	20 g

Diagram dimensions and weights are transcribed from the source image, not independently measured.

Original catalogue wording

WAVE110/泰本田刹车弹簧/刹车拉杆弹簧/后制动回位簧

Components catalogue A, p. 22
Catalogue ID: ZCY-9fa6ae42eb0a

Enquire about this item

Motorcycle Springs

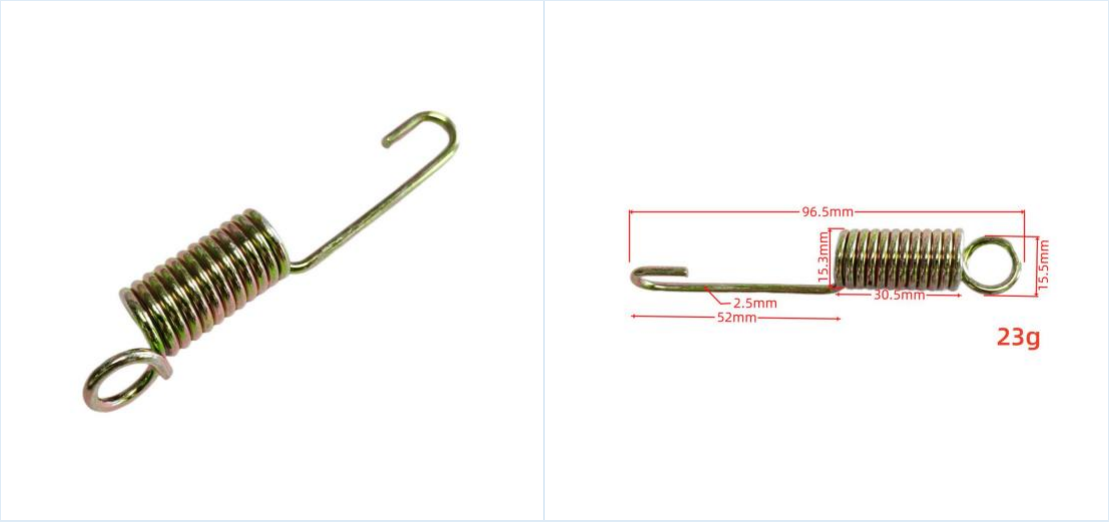

WAVE110/125 WIN100 side stand / side-stand spring

Catalogue product reference. Confirm the exact model, dimensions, fitment and availability before quotation.

WAVE110/125 WIN100

Catalogue specifications
Overall length shown	96.5 mm
Coil-body length shown	30.5 mm
Coil-body diameter shown	15.3 mm
Eye-end diameter shown	15.5 mm
Hook-end length shown	52 mm
Wire diameter shown	2.5 mm
Weight shown	23 g

Diagram dimensions and weights are transcribed from the source image, not independently measured.

Original catalogue wording

WAVE110/125 WIN100侧支架/边撑弹簧

Components catalogue A, p. 23
Catalogue ID: ZCY-5ad1c4cbe8c2

Enquire about this item

Motorcycle Springs

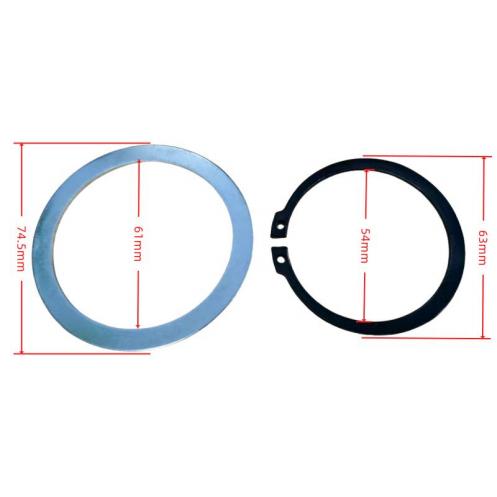

wheel-hub circlip and washer

Catalogue product reference. Confirm the exact model, dimensions, fitment and availability before quotation.

Identify by image and dimensions

Catalogue specifications
Washer outer diameter shown	74.5 mm
Washer inner diameter shown	61 mm
Circlip outer diameter shown	63 mm
Circlip inner diameter shown	54 mm

Diagram dimensions and weights are transcribed from the source image, not independently measured.

Original catalogue wording

轮毂卡簧垫片

Components catalogue A, p. 24
Catalogue ID: ZCY-7b16bc933d94

Enquire about this item
